The AEA Snaqbox is a transparent, two-channel 500 Series chassis designed for uncompromising signal integrity and maximum flexibility in your studio. Each channel features its own dual linear regulators, providing complete power isolation between modules, while an external switching power supply keeps unwanted switching noise far from your signal path. With rugged steel construction, Neutrik XLR connectors, and a choice of clear or fluorescent orange acrylic sideplates, the SNAQBOX is built for professional.
Your Signal Chain — Now in Full View
The Snaqbox™ features a LINK/CASCADE switch. When engaged, the audio output of Channel 1 is internally routed to the input of Channel 2. The link switch disconnects the connection from the XLR input of Channel 2, but does not disconnect the output of Channel 1 (thus allowing dry and wet outputs).
The Snaqbox™ chassis is made of steel and the bottom is affixed with durable rubber bumpers. All XLRs on the Snaqbox™ are Neutrik brand. The unit is powered by an external switching power supply to keep switching noise away from the unit.
Your Modules Deserve to be Seen
Available in Clear or Fluorescent Orange acrylic, the Snaqbox™ is designed to showcase your modules — because they’re worth seeing.

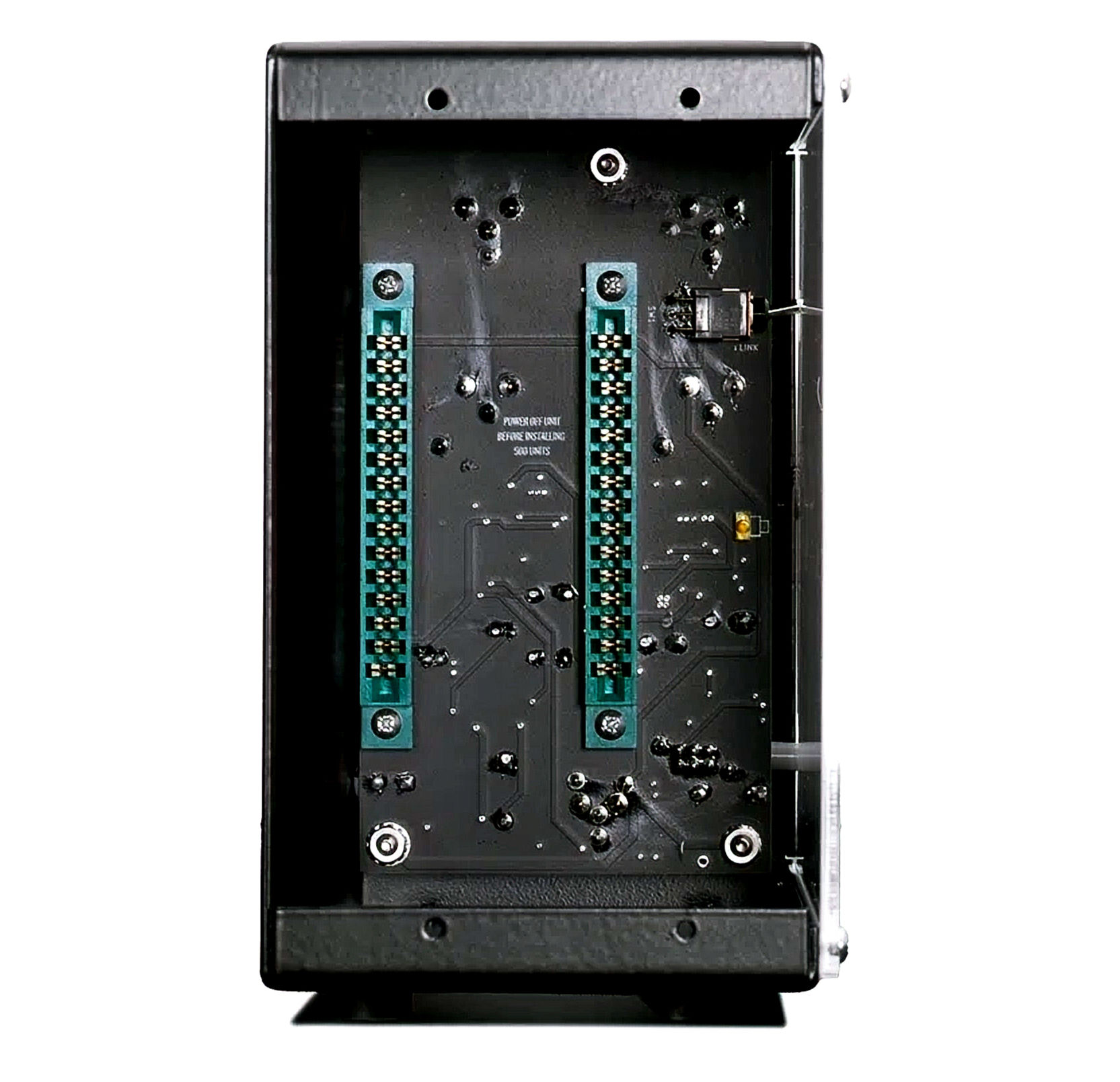

AEA SNAQBOX Two-Channel 500 Series Chassis w/Clear Sideplate
- 2-slot 500 Series chassis with independent dual linear regulators per channel for full power isolation.
- External switching power supply to minimize noise interference.
- Durable steel chassis with clear or orange acrylic sideplate.
- High-quality Neutrik XLR inputs and outputs.
- LINK/CASCADE switch routes Channel 1 output to Channel 2 input internally for creative signal routing.
- Allows dry/wet output configurations when linking channels.
- Includes five ¼” flathead 4-40 screws for module installation.
- Durable rubber bumpers for desktop or rack shelf stability.
- Made in the USA by AEA Ribbon Mics Inc. (est. 1964).
- Power Per Slot: +16V, 150 mA; -16V, 150 mA; +48V, 13 mA
- Dimensions: Length 7.4” × Width 3.3” × Height 5.9”
- Unit Weight: 2.2 lb (998 g)
- Shipping Weight: 4.6 lb (2.1 kg)
