From input to output, the Zen Q Synergy Core is a 14x10 Thunderbolt 3 audio interface designed to help you grow to a bigger setup without losing the desktop size format. The ultra-linear preamps and pristine AD/DA conversion give you professional quality in the studio or on the go – all in a compact package.

Add to that its generous connectivity and real-time onboard effects, and you’ll be up to almost any task – whether you want to record, mix, master, stream, or just play.

Each of the two Antelope Discrete mic / line / Hi-Z preamps has its own phantom power and up to 65 dB of gain, so the interface is primed and ready for recording all sorts of microphones, instruments, or even line-level signals from outboard gear. Two additional 1/4" line / Hi-Z inputs are provided on the front panel. Equipped with two independently adjustable headphone outputs, two balanced monitor outs, and two balanced line outs, the Zen Q Synergy Core can act as your home studio's hub for multiple sets of headphones, mixes, monitor feeds, and more. Its ADAT optical input and S/PDIF digital I/O ports are perfect for expanding your setup with digital gear such as external converters.

Professional Sound Quality
The Zen Q Synergy Core shrinks the gap in sound quality between artists with access to premium studios and home creators. The pristine sound is due to a combination of professional-grade AD/DA converters and Antelope Discrete ultralinear preamps that share circuits with legendary American and British consoles. The standout sonic quality of the device would not be possible without the main pillar of the Antelope Audio sound—the 64-bit AFC clocking technology from the company's high-end master clocks. It is employed in prestigious studios around the world and has been trusted with the scoring of Hollywood blockbusters.

Full Production Pack
Zen Q Synergy Core comes with 37 premium analog-modeled effects that will help you create stunning, sonically rich productions. Aside from the exclusive compressors, EQs, and preamps, the interface comes with 22 guitar amps and cabs, a guitar tuner, and a signature reverb that are all ready to be applied in real time to your tracking and mixing session. The Synergy Core effects processing allows you to stack up your chain with many effect instances while monitoring through the interface without fear of overloading.

At any time, you can expand your effects collection by purchasing more classic go-to units, true rarities never before recreated in digital form, and 3rd party effects like Antares Auto-Tune Synergy.

Create from Anywhere, Anytime
The Zen Q interface is optimized for ultralow-latency recording, high-resolution playback, creative beatmaking, and podcasting from virtually anywhere. With just a Thunderbolt 3 cable (available separately), you can power the Zen Q Synergy Core from your computer and use it to its full potential without having to carry a dedicated power supply with you.

Smart Connectivity
The two XLR-1/4" combo input jacks give you the flexibility to choose between Antelope's Discrete mic preamps and line / Hi-Z inputs; they are easily configurable via the control panel. The front panel offers two 1/4" inputs, which can be used to record line-level sources or Hi-Z instruments.

The four 1/4" TRS DC-coupled balanced outputs (two monitor and two line) allow you to send the signal from the professional-grade D/A converter to separate destinations. Use one set for your main monitors and the other for a feed to analog outboard gear. Plus, there are two separate 1/4" headphone outputs.

Loopback Function for Streaming
For a convenient online broadcasting setup, use loopback capabilities for streaming and recording OS/DAW playback and interface inputs simultaneously.

Conversion and Clocking
- Class-leading AD/DA conversion with up to 127 dB of headroom
- Recording, mixing, and playback at up to 24-bit / 192 kHz
- Proprietary 64-bit Acoustically Focused Clocking (AFC) technology and Jitter Management algorithm delivering increased width, separation, and detail in musical performances

Analog and Digital Connectivity
- Two Discrete ultralinear preamps with 65 dB of gain for studio-quality recordings; all work as microphone / line / Hi-Z inputs via XLR-1/4" combo jacks
- Thunderbolt 3 port carrying up to 16 input and 16 output channels in any popular DAW with custom macOS and Windows drivers
- 8-channel ADAT optical input and stereo S/PDIF input and output for digital expansion
- Balanced 1/4" TRS DC-coupled monitor outputs
- Balanced 1/4" TRS DC-coupled line outputs
- Two stereo headphone outputs with separate gain control

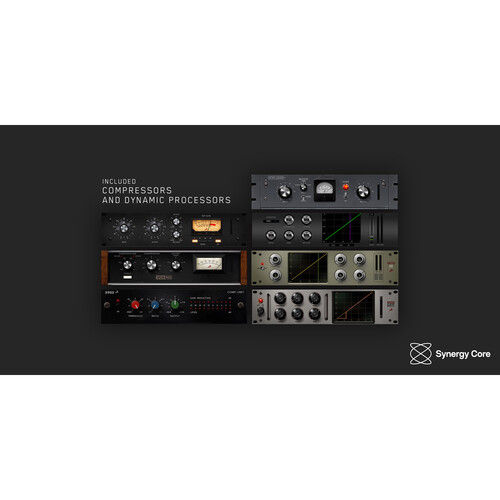

The 37 Real-Time Effects
A Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear, powered by the Synergy Core proprietary onboard platform, which uses two DSP chips and one FPGA chip for real-time effects processing with imperceptible latency.
- BA-31: Germanium Mic Preamp
- Gyraf Gyratec IX: Dual tube mic preamp with high-pass filter
- Clear Q: Parametric EQ
- VEQ-1A: 2-band tube EQ
- VMEQ-5: 3-band tube midrange EQ
- VEQ-HLF: Tube 2-band high- and low-pass filters
- VCA160: VCA compressor/limiter
- Stay-Levin: Vari-Mu tube compressor
- FET-A76: FET compressor/limiting amplifier
- X903: VCA compressor/limiter
- PowerFFC: Feed-forward compressor
- Power Gate: Noise Gate
- Power EX: Expander
- Auraverb: Reverb
- A-Tuner: Guitar tuner
- Plexi 59 (UK): Tube guitar amp
- Bass SuperTube VR: Tube guitar amp
- Darkface 65 (US): Tube guitar amp
- Top30 (UK) Bright: Tube guitar amp
- Tweed Deluxe (US): Tube guitar amp
- Overange 120 (UK): Tube guitar amp
- BurnSphere (DE) Lead: Tube guitar amp
- Marcus II (US) Lead: Tube guitar amp
- Modern (US) CH3: Tube guitar amp
- Rock 75 (UK): Tube guitar amp
- Rock 22.10 (UK): Tube guitar amp
- Darkface 65 2x12: Guitar cabinet
- Top30 2x12: Guitar cabinet
- Modern 4x12: Guitar cabinet
- Green 2x12: Guitar cabinet
- Vintage 4x12: Guitar cabinet
- Green 4x12: Guitar cabinet
- Caliper 50 1x10: Guitar cabinet
- Bluelux 1x12: Guitar cabinet
- Clst 1x12: Guitar cabinet
- England 4x12: Guitar cabinet
- Bass Tube 1x15: Guitar cabinet
