With is exceptionally high 146 dB sound pressure level, -10 or -20 dB pad attenuation, and 75 or 115 Hz high-pass filter, the Edge Note microphone system is an ideal choice for instrumentalists, sound engineers, and studio owners searching for a flexible, high-quality affordable recording tool. The mic modeling technology reproduces the sound of classic microphone models either natively inside your DAW or via FPGA processing inside an Antelope audio interface (in real time).


Emulating the Classics

The Edge Note takes on the character of some of the finest small-diaphragm mics in existence, delivering stunning detail and realism.

A total of 13 mic emulations reproduce the sound of legendary microphones used in the best recordings from the last century. They can be used in real time with an Antelope interface (via Synergy Core processing).

If the user doesn't have an Antelope interface, a native plug-in emulation is available for any DAW and the microphone emulations can be easily applied to the dry audio recording. (iLok 2 or 3 required to use emulations as native plugins within your DAW)


The Key to Transparent Recordings

The flat frequency response of the Edge Note provides an exceptionally clean signal. Capturing the smallest detail of an acoustic guitar or a graceful cello becomes an easy task.

Capturing audio in the most neutral way without dramatically boosting frequencies across the spectrum ensures that when applied, the mic emulations will sound as close as possible to the original microphone being emulated.


Loudness Is Not An Obstacle

With an astonishing SPL of 146 dB, the Edge Note is an excellent choice for recording the loudest sources. Get the most out of a drummer’s performance or a blasting trumpet solo without clipping the converter.

For particularly demanding scenarios, the attenuation pad can reduce the level with -10 or -20 dB. Additionally, the high-pass filter facilitates the handling of the low-end frequencies and negative aspects of the proximity effect.

Included Mic Emulations

Aalborg 4006

Berlin 184

Berlin K53

Berlin K54

Berlin K86

Freiburg 6

Hamburg 211

Hamburg 40

Hamburg 441

Illinois 57

Illinois 7B

Perth 55

Vienna D112


The Features

13 microphone emulations of classic microphone models

Back-electret design provides transparent, balanced sound, and accurate transient responses

Cardioid polar pattern suitable for a wide variety of recording scenarios

Frequency response of 20 Hz to 20 kHz covers the audible spectrum

Signal-to-noise ratio of 69 dB

Pad attenuation switch (-10 and -20 dB) improves close-miking of loud sources,  ensuring a clean signal without distortion.

Maximum sound pressure level of 146 dB

High-pass filter switch (75 and 115 Hz) eliminates low-frequency rumble and compensates for proximity effect

Metal housing and black-matte finish provides style and endurance

Includes shockmount holder to eliminate unwanted vibrations and provide easy positioning

48 VDC Phantom Power required



iLok 2 or 3 required to use emulations as native plugins within your DAW.

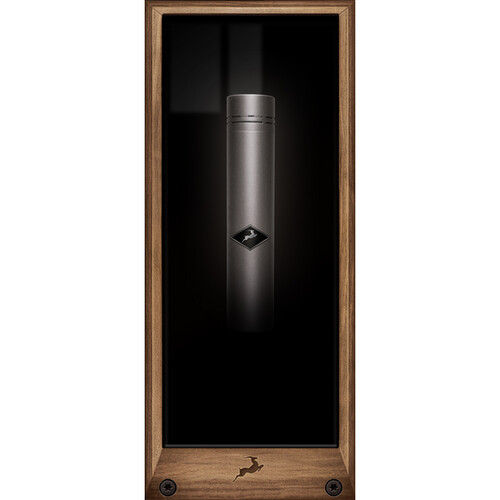

Antelope Edge Note Small-Diaphragm Condenser Modeling Microphone
