The EMI TG12345 Curve Bender by Chandler Limited was conceived and designed by Wade Goeke and Pete Cobbin of Abbey Road Studios. It is based on the vintage EMI TG12345 desk which was used to record the Beatles and Pink Floyd. The recreation of this timeless gear has been rethought and updated with more features in order to meet the demands of modern day mixing techniques. Chandler Limited's Curve Bender expands the original functionality of the EMI Curve Bender by adding 51 EQ points and a multiplier switch which increases the boost/cut by 15dB for more aggressive EQ'ing while also sharpening the EQ curve for tonal variety.


At the heart of the Curve Bender is the TG12345 MK1 amplifier which utilizes germanium transistors and results in the vintage sound which is highly coveted by both musicians and engineers alike. To further show their dedication to the that classic sound in the updated Curve Bender, Chandler Limited has used white markings on the faceplate to indicate the vintage settings used with the original EMI gear and yellow markings have been made to indicate more modern settings. Overall, the Curve Bender offers the vintage sound and look of the classic EMI TG12345 board, with the updated features needed to operate in a modern day recording environment.


The Features

Based on the Vintage EMI TG12345 Desk

The EMI12345 is a classic desk which was used to record bands like the Beatles and Pink Floyd. The Curve Bender is a rethought package of the EMI 12345 featuring 51 EQ Points and bell/shelf selections on the high and low bands.


51 Eq Points for Total Control

51 EQ bands make the Curve Bender very flexible when attempting to zero in on a certain frequency band to boost or cut. The large amount of bands make more detailed sculpting of your tracks a breeze and allow for the Curve Bender to be the only EQ needed when mixing.


Multifunction "Multiply" Switch

A Multiply function adds to the functionality of the Curve Bender when mixing your audio. When selected, it increases the boost/cut to 15dB, as well as sharpening the Q, filters, and bell/shelf selections on the high and low bands.


Output Switch

The gain switch features a +/-10dB adjustment in 1 dB steps for altering the unity gain throughout the unit. Hand-wired gold contacts have been implemented to ensure you are receiving the cleanest, highest quality results.


Constructed of the Highest Quality Material

An all metal chassis, gold contacts, and hand-wiring of components all reflect Chandler Limited's dedication to delivering the highest quality gear on the market. These efforts are reflected in the durability and the resulting audio quality which Chandler Limited is known for.


Hardware Bypass

Each channel of the Curver Bender may be fully bypassed at the press of a button.


The Specs

Equalizer Control Bands

Treble - 3.6, 4.2, 6.5, 8.1, 10, 12, 16, and 20 kHz. Bell or shelf selection.
+/-10 or +/-15 db boost and cut. +/-15 boost/cut also sharpens Q on bell curves.
Presence 1 - .8, 1.2, 1.8, 2.8, 3.6, 4.2, 6.5, 8.1 kHz. Bell curves at +/-10 or
+/-15 db boost and cut. +/-15 boost/cut also sharpens Q on curves.
Presence 2 - .3, .5, .8, 1.2, 1.8, 2.8, 3.6 kHz. Bell curves at +/-10 or +/-15
db boost and cut. +/-15 boost/cut also sharpens Q on curves. Bass - 35, 50, 70, 91, 150, 200, 300 Hz. Bell or shelf selection. +/-10 or +/-15

db boost and cut. +/-15 boost/cut also sharpens Q on bell curves.


High-Pass Filter

20, 30, 40, 50, 60, 80, 100, 160, 200, 320 Hz at a gentle slope.


Low-Pass Filter

30, 20, 18, 14, 10, 8.1, 5, 3, 2 kHz at a gentle slope.


Output Gain

+/-10db adjustment in 1db steps

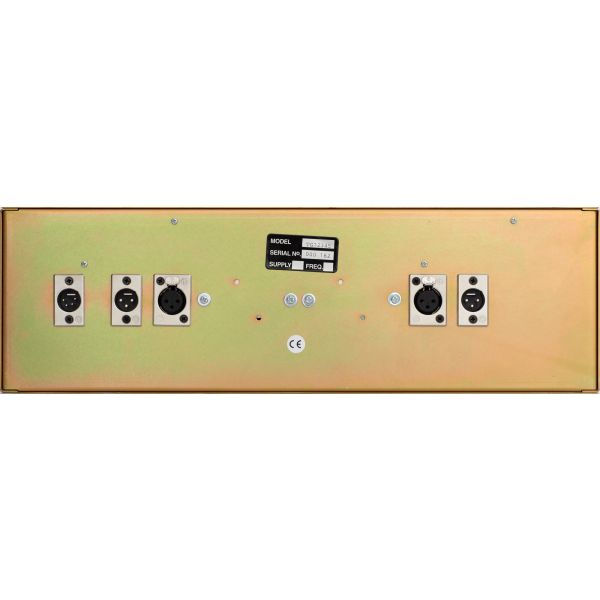

All connections on the Curve Bender are transformer balanced with pin 2 hot.


Power PIN Assignment

1) chassis and audio ground
2) 48 volt
3) +28 volt
4) -28 volt


Chandler Limited is the only company in the world authorized to develop, manufacture and market the “Official Equipment” of EMI/Abbey Road Studios.

Chandler Limited and their associated logos are registered trademarks of Chandler Limited, Inc. Abbey Road Studios, EMI, TG, REDD and RS and their associated logos are trademarks of EMI (IP) Limited.

Chandler Limited EMI TG12345 Curve Bender EQ

  • Chandler Limited Curve Bender EQ
  • The ultimate TG equalizer issued in celebration of the 75th birthday of Abbey Road Studios
