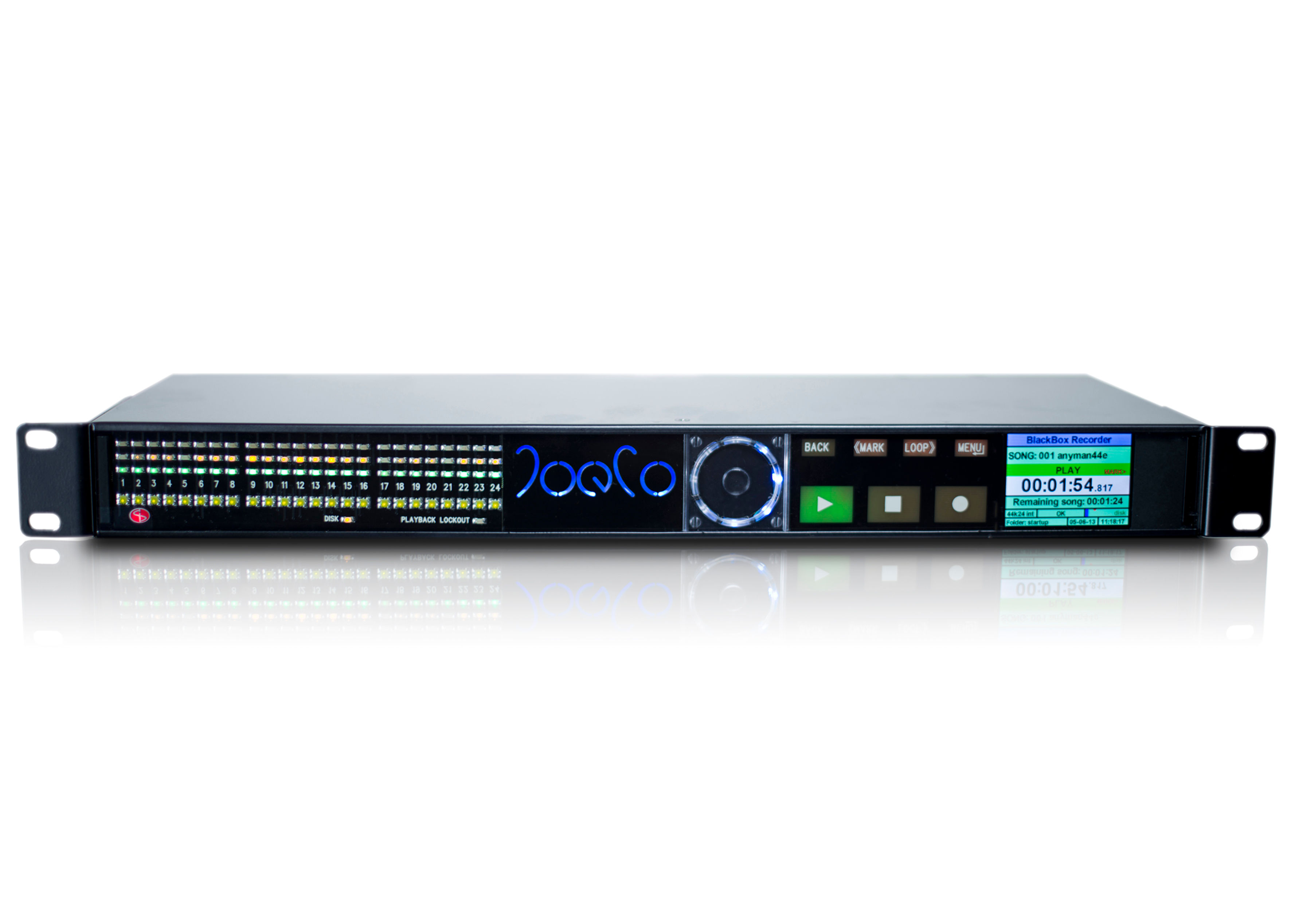

The JoeCo BlackBox Recorder with Digital AES/EBU I/O captures audio via a digital mixing console with AES/EBU inputs and outputs. Three 25-way female D-type connectors, each carrying 8 channels of inputs and outputs, can be connected directly into the digital mixer to capture and return the signals without any additional A-D conversion, giving 12 stereo channels of AES/EBU inputs and 12 stereo channels of AES/EBU outputs. Analogue inputs are also still available (switchable). The AES/EBU interfaces can operate at up to 96kHz and conform to the AES standard (AES-3:2003). It is also still possible to chain multiple BBR1D units together to make larger multitrack recordings. enables audio capture via a digital mixing console with AES/EBU inputs and outputs. Three 25-way female D-type connectors, each carrying 8 channels of inputs and outputs, can be connected directly into the digital mixer to capture and return the signals without any additional A-D conversion, giving 12 stereo channels of AES/EBU inputs and 12 stereo channels of AES/EBU outputs. Analogue inputs are also still available (switchable). The AES/EBU interfaces can operate at up to 96kHz and conform to the AES standard (AES-3:2003). It is also still possible to chain multiple BBR1D units together to make larger multitrack recordings.

The JoeCo BlackBox Recorder is the first large-scale multi-channel recorder specifically designed for audio acquisition and capturing live performance. Developed to solve the inherent problems of working with computer-based systems in a live environment, it provides engineers with a computer-free, high-quality solution for live multi-channel audio capture.

Able to record or replay up to 24 channels of 24bit/96kHz audio, the BlackBox BBR1 Recorder is available in both analogue and digital variants, offering a choice of professional interfaces to any live mixing console. Units can be linked for a recording involving larger track counts.

Audio is recorded as mono broadcast WAV files to an external USB 2.0 drive or USB 2.0 Flash drive. The implementation of JoeCo's iXML plugin additionally enables PolyWAV files to be recorded. Using universally accepted file and disk formats on external storage solutions has many advantages when used in the field or on tour. It also eliminates the time normally required to load recordings into a workstation for subsequent mixing and re-purposing, which is a crucial factor in fast turnaround productions. Recorded files can be instantly imported into any Mac- or PC-based Digital Audio Workstation for editing, remixing and re-purposing.

The BlackBox BBR1 Recorder is designed to be supremely simple to use, requiring just the input and output connections, power and a USB drive before pressing the RECORD button. A full color LCD screen and striking LED displays show all the information that's needed in order to know exactly what's happening. The recorder can be remotely controlled and monitored via JoeCoRemote for iPad. Recordings can be named using either JoeCoRemote or a standard computer keyboard. The unit is also equipped with a range of fail-safe features to keep recordings as secure as possible, including the ability to recover files should power fail during a recording.

The BlackBox BBR1 Recorder has a wide range of applications in Live Performance, Broadcast, Film & TV Sound and Post Production. An additional software add-on turns the recorder into a BlackBox Player, enabling synchronous or instant playback of audio material for various applications.
