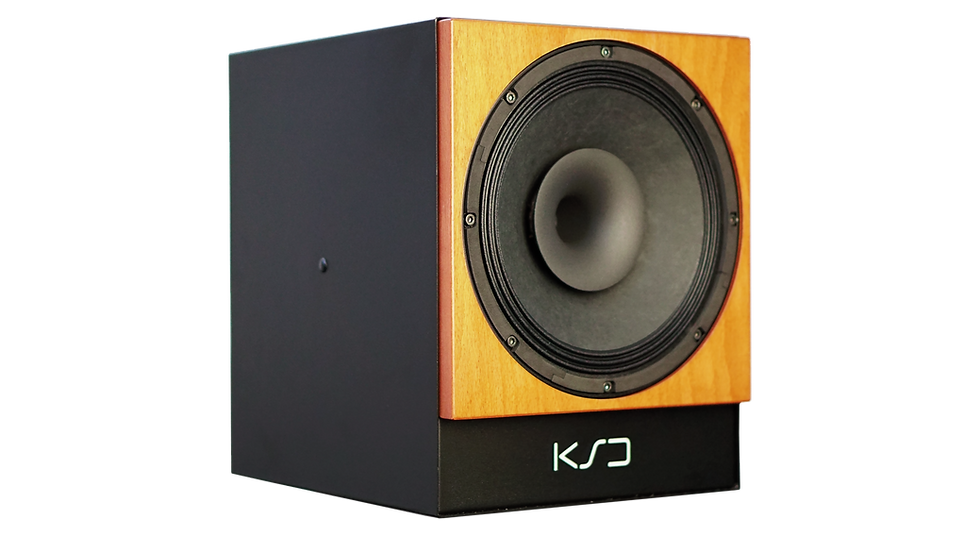

KSD C100 Reference Monitor Right - Natural Cherry
The KSD C100 Reference Monitor is a high-performance coaxial speaker designed to meet the rigorous demands of professional applications such as mixing, recording, broadcasting, and immersive use. This versatile monitor excels in both stereo and immersive multi-channel environments. Its coaxial design, paired with a conical 70° horn, optimizes radiation behavior to create an ideal sweet spot, making it perfect for any studio setting, including acoustically challenging spaces. The KSD C100 Reference incorporates KSD’s proprietary FIRTEC™ technology for frequency and phase linearization, enhancing impulse response and precise sound source mapping.

Left and Right units available with either Natural Cherry or Black front panels.

KSD C100 Reference Monitor Right - Natural Cherry

$2,849.00Price
Quantity

  • Proprietary FIRTEC™ Technology

    - Employs patented phase-linear FIRTEC™ system filters for timely and accurate sound reproduction across the entire frequency range

    Coaxial Design

    - Features a unique coaxial structure with a conical 70° horn, ensuring optimal radiation and a perfect sweet spot for critical listening

    High Power Output

    - Equipped with a power amplifier delivering over 200W (peak) per channel, providing substantial power reserves suitable for any professional studio application

    Efficient Performance

    - High efficiency in bass chassis and compression drivers reduces distortion at higher volumes, while PWM power amplifiers ensure minimal waste heat, enhancing durability and performance

    Versatile Placement Options

    - Optimized for performance in any listening environment, including on-wall installations, ensuring maximum control over sound reproduction in diverse settings

    May be paired with the KSD B500 subextension

  • Type

    - 2-way coaxial point sound source

    Signal Processing

    - In FPGA in 24 Bit ADC/DAC FIRTEC™, patent: 19823110

    Features

    - FIR-Xover, Limiter, 6 User EQ curves, High-&Low Shelving, Delay, Gain

    Drivers

    - Coaxial chassis with 1″ compression driver on 70° horn and 10″ high-performance woofer/midrange driver

    Power Amplifiers

    - 250W/250W

    SPL (max)

    - 118 dB Peak/pair

    Frequency Response

    - 35 – 22000 Hz

    Weight

    - 15 kg

    Dimensions

    - 285 x 350 x 350 mm

    Accessories

    - Table stand/wall mount optional

    Optional

    - Remote Control (KSD-RC) controls 6 user EQs, volume, delay, dim, M/S
