The LEA Professional CS704D is a 4-channel, 2800W Class-D power amplifier, capable of delivering 700W per channel, and supporting impedance loads of 2, 4, or 8 ohms, and 25, 70, or 100V Hi-Z output loads per channel. This ADSP version includes 96 kHz linear-phase FIR crossover filters with 2048 taps per channel, providing precise audio control. Additionally, it offers 4 seconds of input delay and takes under 10 seconds to go from power on to audio when using PoE. The FIR-based speaker tunings further enhance the audio experience, ensuring unparalleled performance and reliability.

Designed for fast easy network control, the CS704D sports network connections via the 100 MB/s Ethernet input port, Wi-Fi, and two Dante inputs (primary and secondary) for connecting to external control devices, including web- and IoT-based cloud services, as well as an analog input for direct remote I/O control.

The CS704D features balanced analog Amphenol Anytek block terminal I/O for line inputs and speaker outputs. The Smart Power Bridge technology lets you dynamically double power on each channel when needed without sacrificing the power quality on other channels. This amp includes all necessary block terminal cables for each input and output, two removable and washable foam filters for the front air intake, and one IEC power cable to get you started right away.

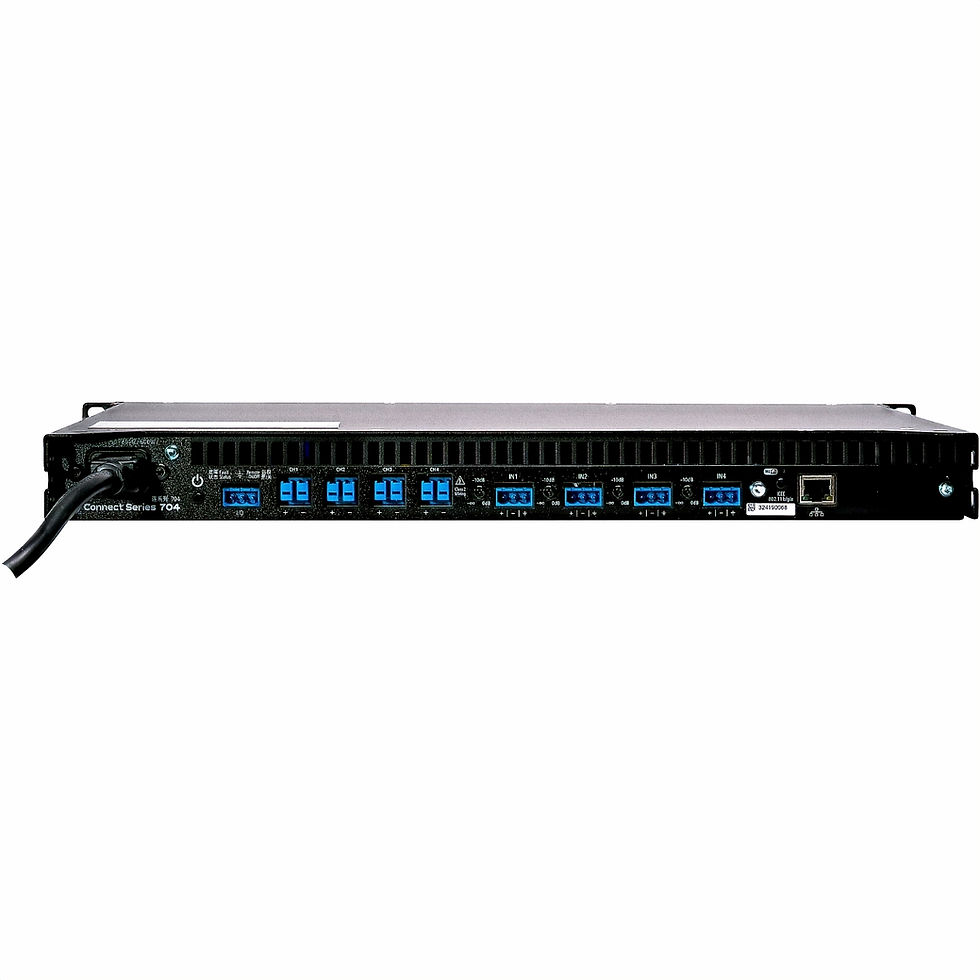

LEA Professional CONNECT 704D, Dante Inputs, 4-Channel Amplifier, 700W Per Ch

$4,180.00Price
Quantity

  • - Web Browser based UI that works on any device with no software to download

    - Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power to that channel without sacrificing and amplifier channel

    - Direct LoZ and HiZ (70V or 100V) selectable per channel

    - 3 Way to connect: Built-in WiFi access point, Connects to existing WiFi network, Local area network Ethernet connection

    - Universal switch mode power supply with PFC. Operates from 100VAC to 24VAC +/- 15%

    - 96kHz Analog Devices DSP with input routing, multiple 48dB/octave crossover filters, 8 parametric EQ filters, user configurable speaker limiters, and real-time monitoring

    - Fully routable analog inputs

    - External I/O port for remote on/off and fault monitoring

    - High efficiency Class D output stage for low AC current draw

  • - Power output per channel: 350W @ 2Ω, 700W @ 4Ω, 700W @ 8Ω, 700W @ 70V/100V

    - Inputs: 4 channels with user selectable 26dB and 34dB input sensitivity, Dante: 8x8 Dante at 96kHz or 48kHz, Multicast or Unicast AES 67 (configurable via the Dante Controller software)

    - THD+N: 0.1% (20Hz – 20kHz)

    - Frequency Response: 20Hz to 20kHz +/-0.5dB (4Ω, 8Ω, 70V, 100V), -2.5dB @ 20kHz for 2Ω

    - Signal to Noise level: 105dB (20Hz to 20kHz referenced to 8Ω)

    - Crosstalk: 70dB (20Hz to 20kHZ)

    - DSP Architecture: Analog Devices Sigma 06kHz DSP processor with 32-bit Core with sample rate converters

    - Amplifier Output Classification: Class D with proprietary Smart Power Bridge Technology allowing bridged output function without sacrificing and amplifier channel

    - Crossovers: up to 48dB/octave IIR filters (Linkwitz, Riley, and Butterworth

    - Input Matrix: Routable matrix, any input to any output with primary and secondary input priority

    - Output Delay: 100ms per channel

    - Parametric EQ 8-band parametric EQ per channel

    - Output Protection: DC, VHF, and AC mains protection, overtemp and current limiter, fan fault detection

    - User Adjustable Limiting: Peak voltage and RMS voltage

    - Load Monitoring: Realtime Load Monitoring, and pilot tone detection from internal or external sources

    - User Interface: Web browser interface, user interface, 3rd party API control, or CLOUD control

    - External I/O: External I/O in toggles remote on/off, external I/O out indicates amplifier health

    - Power Supply: Universal switch mode power supply with Power Factor Correction

    - AC Mains: 100VAC – 240VAC +/-15% 50Hz or 60Hz

    - Dimensions: 14.25” x 19” x 1RU (362mm x 482mm x 1RU)

    - Weight: 14 lbs. (4 kg), Shipping weight: 18.7 lbs. (8.5 kg)

    - Cooling: Front to rear variable fan speed cooling. Fan noise at 1m: 50dB at idle, 57dB at 50%, 63dB at full speed
