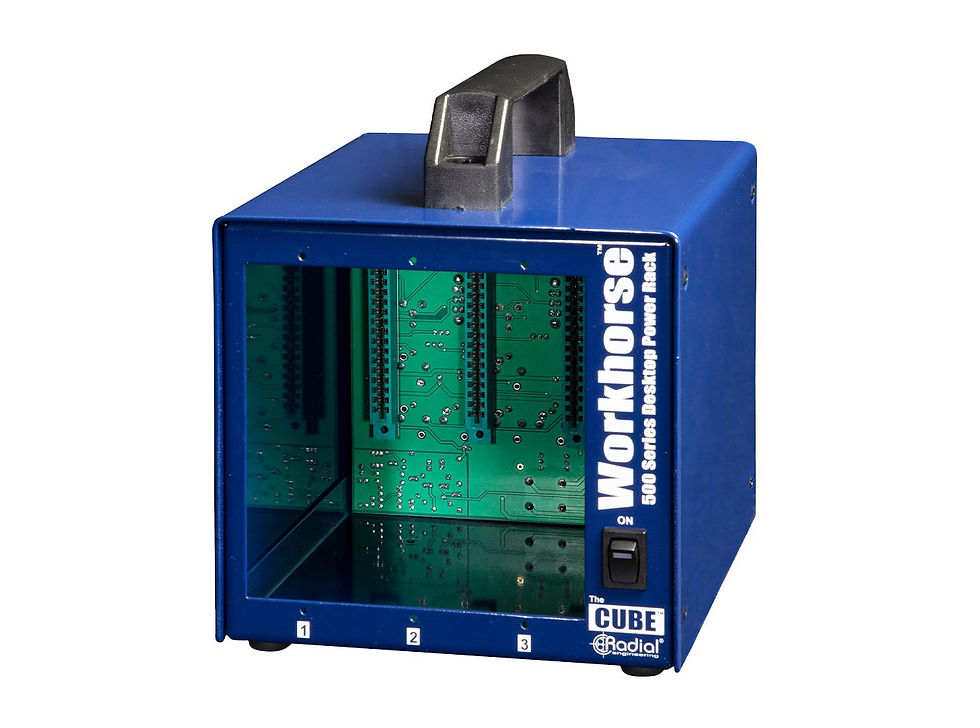

Radial Engineering Workhorse Cube 3 Space 500 Series Desktop Power Rack
The Radial Cube is a compact desktop 3-slot 500 series power rack that follows the guidelines set out in the Workhorse open-source document (Whos-Doc). This accommodates the very latest Radial modules while being backward compatible with older formats. Regarding the audio performance – there is no audio circuitry other than connectors. The Cube will not impart any color, distortion or artefact. The Cube employs Edac gold plated 15-pin card-edge connectors on the inside and Neutrik connectors with non-tarnishing nickel-silver contacts on the back panel for excellent signal transfer. Each slot is equipped with an auto-resetting fuse to protect the system should a faulty module be employed. A 500 milliamp external supply provides plenty of current to feed the modules and 48V for phantom power.

Radial Engineering Workhorse Cube 3 Space 500 Series Desktop Power Rack

$399.99Price
Quantity

  • - Desktop power rack houses three 500 series modules

    - Compatible with Radial and older API systems

    - Provides up to 500 milliamps of shared current

    - Optional angles let you recess it into the table top

  • Audio circuit type

    - Connection buss from modules to connectors

    Data Compression

    - Adheres to the Whos-Doc and VPR Alliance

    Input Connectors

    - 3 balanced XLR male, 3 ¼" TRS

    Output Connectors

    - 3 balanced XLR male, 3 ¼" TRS

    Extras

    - Desktop format; 500 milliamps available current; 166mA average current per slot

    Construction

    - 14-gauge steel

    Size

    - (L x W x D): 7.5" x 7.5" x 6.25" (190 x 190 x 160mm)

    Weight

    - 5.4 lb (2.5kg)

    Shipping size

    - (L x W x D): 9.0" x 12.5" x 9.25" (229 x 318 x 235mm)

    Shipping weight

    - 7.85 lb (3.6kg)

    Power

    - External 100V - 240V AC with 48V Phantom

    Conditions

    - For use in dry locations only between 5°C and 40°C

    Warranty

    - Radial 3-year, transferable
