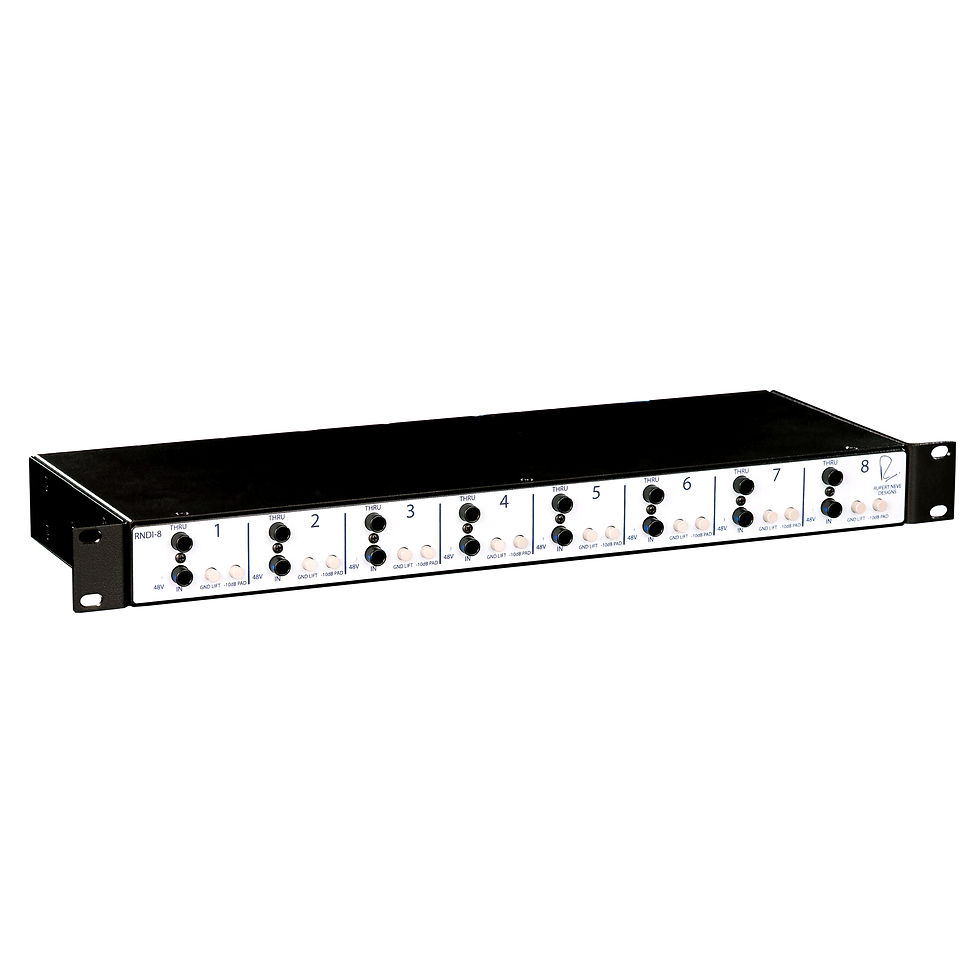

The Rupert Neve Designs RNDI-8 consists of eight individualized channels of RND's Active Transformer DI's in a single rack space. The discrete, class-A circuit topology is built around Neve’s custom transformers, resulting in outstanding sonic performance and natural sound from 5Hz and beyond 90kHz for any instrument-level source.

The Eight Custom Transformers
The RNDI-8’s signature sound stems from the custom-wound output transformers that provide isolation while adding musical harmonics and dimension to the sound. The low-impedance, transformer-balanced outputs excel at driving long cable runs, and the performance is consistent regardless of the connected equipment. This is important for both live and studio environments where the unamplified signal may travel 100’ or more before hitting an amplifier.

The Class-A & Discrete FET Input Amplifiers
The class-A & discrete input amplifiers in the RNDI-8 are powered by 48V phantom and create a high-impedance input of over 2 mOhms, ensuring a consistent performance. The design eliminates crossover distortion that can otherwise introduce unwanted upper-order odd harmonics. The harmonic content is derived from the octave (2nd order) and fifth above octave (3rd order) relative to the fundamental. These musically relevant harmonics, present in subtle amounts, enhance the richness of the original signal and provide a distinctly musical response. Furthermore, there are no ICs or digital components to potentially cause negative effects on the tone.

Giant Headroom & Wide Bandwidth
The RNDI-8 has a unique bandwidth and high-frequency response that combines with the output transformer’s harmonic enhancement for a thunderous low end and an unparalleled depth. Maximum input level is a massive +21dBu, and with the addition of a –10dB pad, that number soars to +31dBu—more than enough for even the highest-output DJ mixers.

Two Distinct Ground Lift Options
The RNDI-8 includes a standard DI “lifting” option via eight individual “Pin 1 Isolate” switches on the rear panel. This will usually eliminate common sources of hum in the signal path. It also includes eight ground lift buttons on the front panel, which separate each channel’s circuit ground from the chassis ground, providing another helpful option to detect and eliminate unwanted ground hum.
