The SPL MC16 is designed to monitor surround and immersive audio projects (like Dolby Atmos, Auro 3D, and others) in the analog domain. The MC16 offers the same unrivaled quality as 120V stereo monitoring.
16 SpeakersSixteen buttons are used to activate the corresponding loudspeakers. The 16 inputs of Input 1 and Input 2 are routed directly to the outputs. This ensures that an output routing of a DAW session always matches the routing in the MC16. The buttons let you insert a label with the exact name of the loudspeaker.
2 x 16
MC16 offers two 16-channel inputs to quickly compare a current project with a reference production.
Monitor Level
This analog potentiometer is used to adjust the monitor level. SPL developed a 16-level potentiometer to realize the volume control in the analog domain. SPL didn't want to accept a digital control, which is afflicted with resolution deficits and limited dynamic range.
Presets
You can save speaker setups to three memory locations. So you can quickly call up a 5.1 or an 11.1 or a 9.1.6 configuration. In solo mode, three more memory locations are available with the same keys. You can create solo groups for all front speakers, ceiling speakers and rear speakers.

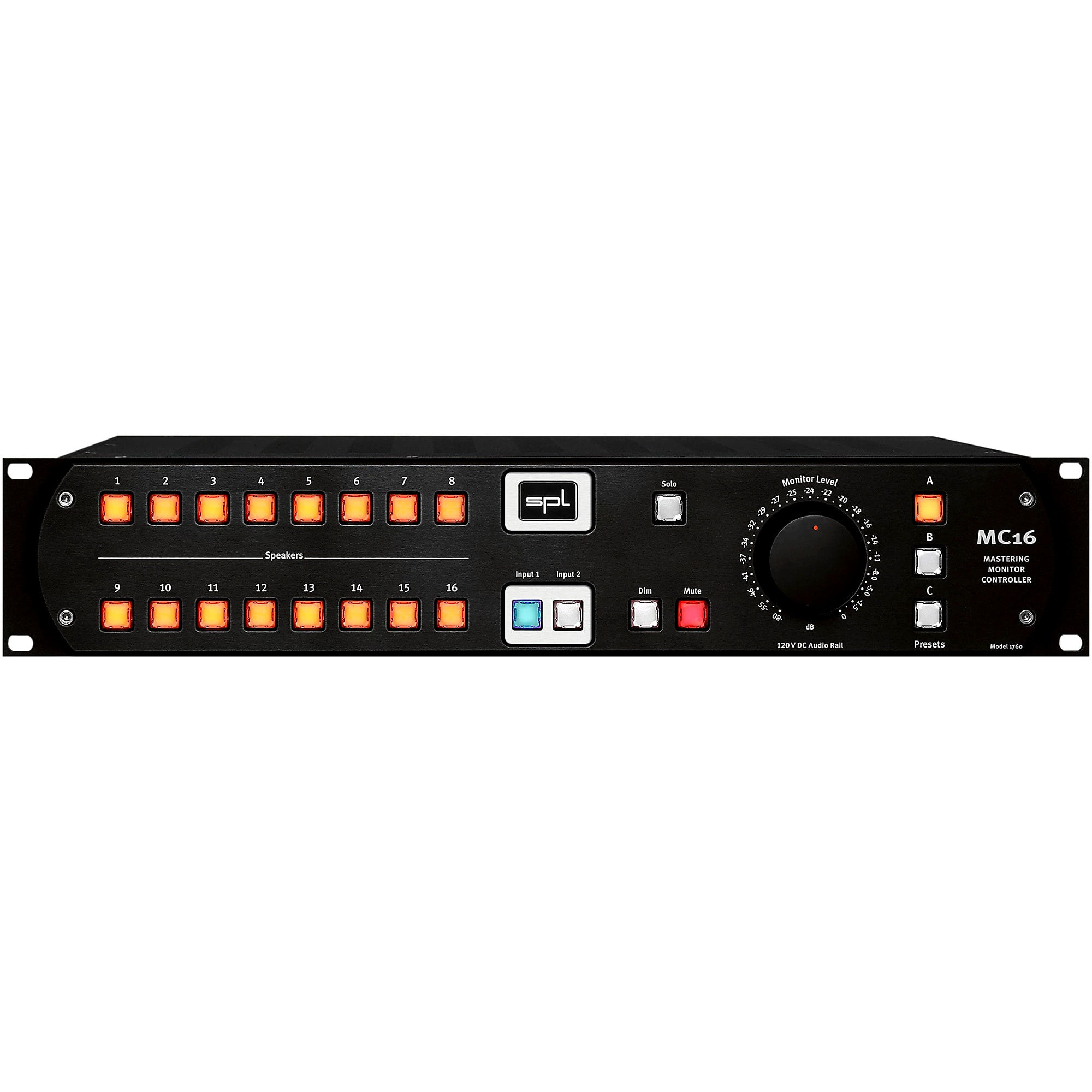

SPL MC16 Mastering Monitor Controller
- Monitor Up to 16 Channels
- For Mastering Multi-Channel Projects
- 120V Power Rail for Increased Headroom
- XLR & DB25 Connections
- Ganged 16-Channel Level Control
- Solo, Dim & Mute Controls
- Recallable Presets
- Compatible with SPL D
- Available in Black, All Black, and Red.
Maximum input & output gain
- 32.5 dBu
Input impedance
- 20 kΩ
Output impedance
- 75 Ω
Common mode rejection
- -82 dBu
Frequency range (-3 dB)
- 4 Hz – 300 kHz
Crosstalk (1 kHz)
- -100 dBu
THD + N (+24 dBu)
- > 112 dB
Noise (A-weighted)
- -102.4 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio
- +/- 60 V
Operating voltage for relays and LEDs
- + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber)
- 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V
- T 1 A
Fuse for 115 V
- T 2 A
Power consumption
- max. 70 VA
Physical
Dimensions
- 19" W x 3.46" H x 11.8" D
Unit weight
- 18.52 lb
