A dedicated, no-compromise kick drum condenser microphone that handles a staggering 155 dB.


The BDM-01 is a dedicated bass drum microphone that is as equally at home in the studio as on the road. It has been designed in every detail to handle the sound pressure level and specific sonic qualities of the bass drum. The high-end condenser capsule provides excellent attack and HF response, and the frequency curve has been tailored for that perfect bass drum sound. The dynamic range, sensitivity and pop filters are also optimised for the sound and power of the bass drum.



The heart of the microphone is Milab’s handcrafted 21 mm condenser capsule that captures the true sound of the drum with a fullness and attention to detail that is simply superior to a typical dynamic microphone alternative.

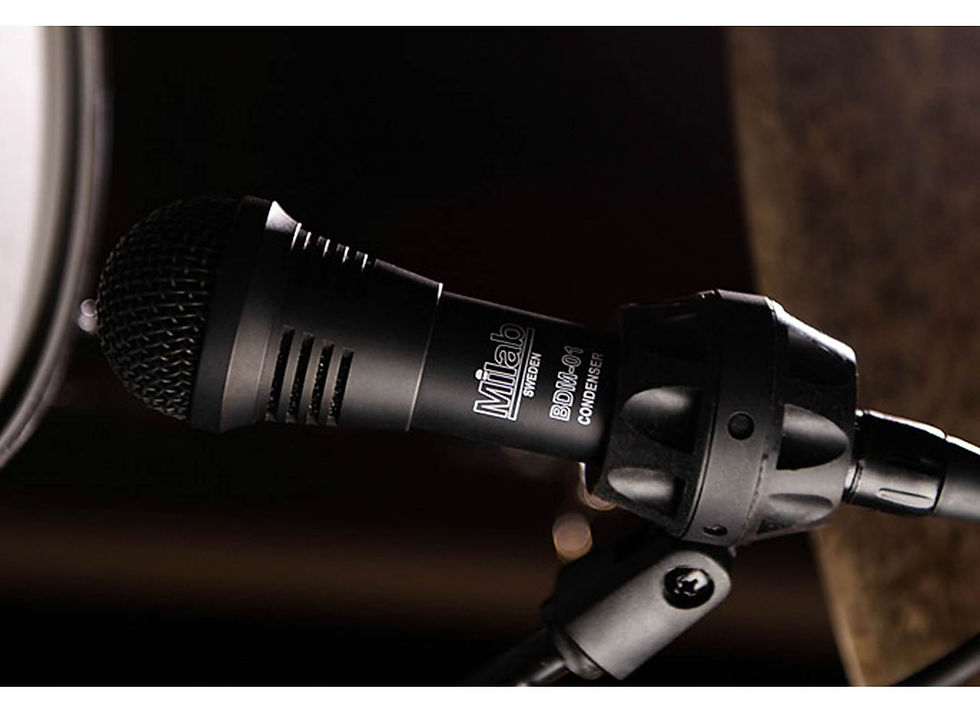

Milab BDM-01 Kick Drum Condenser

$1,226.00Price
  • Type Condenser

    Article number 1101

    Frequency response 20 to 20,000 Hz

    Polar pattern Cardioid

    Max SPL (1 % THD at 1 kHz) 155 dB

    Sensitivity at 1 kHz 2 mV/Pa (± 1 dB)

    A-weighted noise level (IEC 179-A) 25 dBA

    Power supply 48 V Phantom (DIN/IEC)

    Current consumption 4 mA

    Output impedance <200 Ω

    Minimum load impedance 1 kΩ

    Connection 3-pin XLR

    Length 142 mm

    Diameter 24/47 mm

    Net weight 210 g
